19ft long
-
Sleeps 3
-
3.0L V6 BlueTEC
-
188 HP

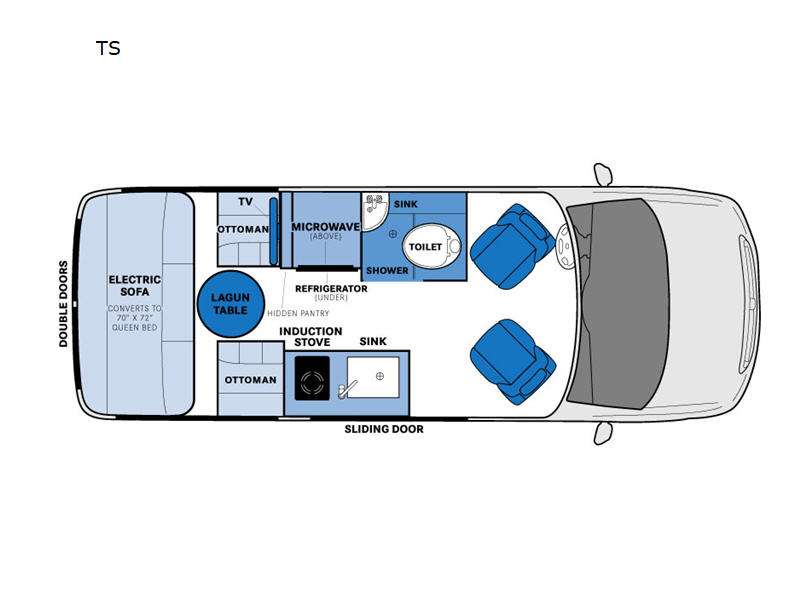

TS Floorplan
Specifications
| Sleeps | 3 | Length | 19 ft 5 in |
| Ext Width | 7 ft 11 in | Ext Height | 9 ft 7 in |
| Int Height | 6 ft 3 in | Interior Color | CASHMERE WHITE CHAM |
| Exterior Color | GREY WHITE | Hitch Weight | 5000 lbs |
| GVWR | 8550 lbs | Fresh Water Capacity | 20 gals |
| Grey Water Capacity | 15 gals | Black Water Capacity | 12 gals |
| Tire Size | LT245/75R16 | Furnace BTU | 11500 btu |
| Fuel Type | Diesel | Miles | 113 |
| Engine | 3.0L V6 BlueTEC | Chassis | Mercedes Benz Sprinter 2500 Van |
| Horsepower | 188 hp | Fuel Capacity | 24.5 gals |
| Wheelbase | 144 in | Torque | 325 ft-lb |
| Refrigerator Type | 12V | Refrigerator Size | 3.2 cu ft |
| Cooktop Burners | 1 | Number of Awnings | 1 |
| Axle Weight Front | 3870 lbs | Axle Weight Rear | 5360 lbs |
| LP Tank Capacity | 8.16 gals | Water Heater Type | Truma AquaGo Comfort Plus |
| AC BTU | 11000 btu | TV Info | 24" Smart LED TV |
| Awning Info | Fiamma Power with LED Lights | Gross Combined Weight | 13550 lbs |
| Shower Type | Wet/Bath Shower | Electrical Service | 30 amp |
| VIN | W1X4NBHY5RT180628 |
Description
New 2025 Pleasure-Way Ascent TS Class B Motorhome Camper Van for Sale at Fretz RV of Philadelphia
Pleasure-Way Ascent Class B diesel motorhome TS highlights:
- Power Sofa
- Wet Bath
- Lagun Table System
- Pull-Out Pantry
- Power Awning
- Inflatable Cab Air Bed
Fretz RV of Philadelphia is the nations premier dealer for all 2023, 2024, 2025 and 2026 Leisure Travel, Wonder, Unity, Pleasure-Way Plateau TS FL, XLTS, Ontour 2.2, 2.0 , AWD, Ascent, Winnebago Spirit, Sunstar, Travato, Navion, Porto, Solis Pocket, 59P 59PX, Revel, Jayco, Greyhawk, Redhawk, Solstice, Alante, Precept Prestige, Granite Ridge, Melbourne, Swift, Terrain, Seneca, Coachmen Galleria, Nova, Beyond, Renegade Vienna, Roadtrek Zion, SRT, Agile, Pivot, Play, Slumber, Chase, and our newest line Storyteller Overland Mode, Stealth Mystic, Hilt, and Beast 4x4 AWD Off-Road motorhomes So, if you are in the York, Harrisburg, Lancaster, Philadelphia, Allentown, New Jersey, Delaware New York, or Maryland regions; stop by and browse our huge RV inventory today. Fretz RV has been a Jayco Dealer Partner for over 40 years, Winnebago Dealer Partner for over 30 Years and the oldest Roadtrek Dealer Partner in North America for over 40 years!
We also carry used and Certified Pre-owned RVs like Airstream, Wayfarer, Midwest, Chinook, Phoenix Cruiser, Grech, Born Free, Rialto, Vista, VW, Westphalia, Coach House, Monaco, Newmar, Fleetwood, Forest River, Freelander, Sunseeker, Forester, Freedom Elite, VanDoIt, Chateau, Tiffin Allegro Thor Motor Coach, Georgetown, A.C.E. and are always below NADA values. We take all types of trades. When it comes to campers, we are your full-service stop. With over 78 years in business, we have built an excellent reputation in the Recreational Vehicle and Camping industry to our customers as well as our suppliers and manufacturers. With our participation in the Hershey RV Show every year we can display the newest product with great savings to customers! Besides our presence online, at Fretz RV we have a 12,000 Sq. Ft showroom, a huge RV Parts, and Accessories store. We have a full Service and Repair shop with RVIA Certified Technicians. Bank financing available. We have RV Insurance through Geico Brown and Brown and Progressive that we can provide instant quotes, RV Warranties through Compass and Protective XtraRide, and RV Rentals. We have detailed videos on RVTrader, RVT, Classified Ads, eBay, RVUSA and Youtube. Like us on Facebook. Check out our great Google and Dealer Rater reviews at Fretz RV. Fretz RV of Philadelphia is located at 3479 Bethlehem Pike, Souderton, PA 18964 215-723-3121. Call for details. #RV #GoCamping #GoRVing #1 #Used #New #PaDealer #Camping
Features
Standard Features (2025)
Entertainment
- 24” Smart LED TV w/ swing out mount
- Bose® soundbar w/ Bluetooth®
- Winegard® Rayzar® Automatic HDTV antenna
- USB-A & USB-C Charging ports
Interior
- Blackout roller shades w/ magnetic catch
- Folding privacy/sun shades for windshield & cab door windows
- Radius laminate cabinet doors
- Positive locking door latches
- Blum® cabinet hinges and door stays
- Recessed LED lighting under cabinets and along roof
- Laminate-wrapped kitchen, wall partitions and cabinet boxes
- Vinyl soft touch headliner
- Vinyl flooring
- 3M™ Thinsulate™ insulation inside walls
- Foil-faced fiberglass insulation along roof
- Fire extinguisher
- LP, CO & Smoke detectors
Galley
- 12V, 3.2 cu. ft. refrigerator/freezer
- Pull-out pantry
- 1-burner induction cooktop
- Microwave
- Large undermount stainless steel sink w/ Corian® cover
- Matte black Moen high arc faucet with pullout sprayer
- Corian® solid surface countertop
- Flip-up Corian® countertop extension
- Full extension ball bearing drawer glides w/ soft close
- Baltic birch drawer boxes
Bathroom
- Private enclosed wet bath w/ shower
- Shower curtain
- Handheld showerhead
- Mirror
- Residential-style ceramic bowl toilet w/ foot flush
- Towel rack
Electrical
- Dual 10-inch touchscreen control panels
- 600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- Internal/automatic coach battery heating system for cold weather protection
- Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
- 100-amp lithium charger
- Available 100-Watt Go Power!® solar package
- Go Power!® MPPT solar controller
- 2.5 KW Onan® QG 2500i LP generator
- Automatic generator start (AGS)
- Mastervolt DC/DC charger
- Multiplex wiring
- Dimmable LED lighting
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- AC distribution panel
- DC load center
Touchscreen Control Panel
- Upgraded resolution for wider viewing angles
- 10-inch full-color display
- Integrated inverter controls
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Tank level monitoring – LP, fresh, grey and black
- Climate control center w/ thermostat for A/C, vent and furnace
- Truma AquaGo® comfort plus water heater controls
- Dimmable LED light banks
- Water pump, awning, sofa and vent controls
- Generator start/stop and automatic generator start (AGS)
- DC electrical system diagnostics
- Dark and light viewing modes
Exterior
- Fiamma® power awning w/ LED lights
- LED porch light
- Awning style frameless windows
- 110-120 volt power outlet
- Utility center (LP switch, 30-amp power outlet, city water connection)
- Exterior shower w/ handheld wand
- Fiberglass running boards w/ integrated entrance steps
- Access panels and components painted to match exterior color
Heating, Ventilation, & Cooling
- Truma VarioHeat 11,500 BTU Furnace
- Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
- Truma Aventa Eco 13,500 BTU air conditioner
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valve
- Monitor panel for LP, fresh, grey, black and coach batteries
- Sewer discharge center w/ black and grey water gate valves
- Low point drain for water lines
- LP tank w/ electric shut off switch
- LP BBQ quick connect
Rear Seating Area
- Lagun table mount system w/ 360° swivel tabletop
- Power sofa w/ two three-point seat belts
- Memory foam sofa cushions
- Ultraleather® fabric
Chassis
- Mercedes-Benz Sprinter 2500 chassis
- 4-Cylinder OM 654 High Output
- 211 HP rating
- 144" wheelbase
- 9G-tronic automatic
- Diesel fuel
- 4-wheel disc brakes w/ABS
- Adaptive electronic stability and traction
- LT245/75R/16 All-season tires
- AGM 12V 70Ah chassis battery
- 7-pin wiring connector
Cab Conveniences
- Driver and passenger power and heated swivel seats
- Mercedes-Benz leather
- Four-way lumbar support
- Power adjustments
- Memory settings
- Three-stage heating controls
- MBUX Multimedia System w/10" Touchscreen
- Navigation
- Bluetooth connectivity w/audio streaming
- "Hey Mercedes" voice control
- Smartphone integration w/hands-free function
- multimedia interface w/USB-C ports
Safety
- Airbags – driver and passenger
- Distronic Plus® Adaptive Cruise Control
- Drive Away Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Traffic Sign Assist
- Attention Assist
- Active Lane Keeping Assist
- Blind Spot Assist
- Crosswind Assist
- LED headlamps
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
