2027 Storyteller Overland Gxv Epic Epic Base
Highlights
- Exclusive Kenworth K370 4x4 chassis with 6.7L Cummins Turbo Diesel engine
- 18kWh Mastervolt power system with 1,980W solar array and 6,000W diesel generator
- 200-gallon diesel fuel capacity providing up to 1,800 miles of driving range
- Fully insulated 60mm composite sandwich body with dual-pane ArmorVision windows
- Heated rear garage featuring dual-direction 800 lb capacity sliding cargo tray
- 20,000 lb ComeUp front winch and 360-degree Diode Dynamics scene lighting
Overview

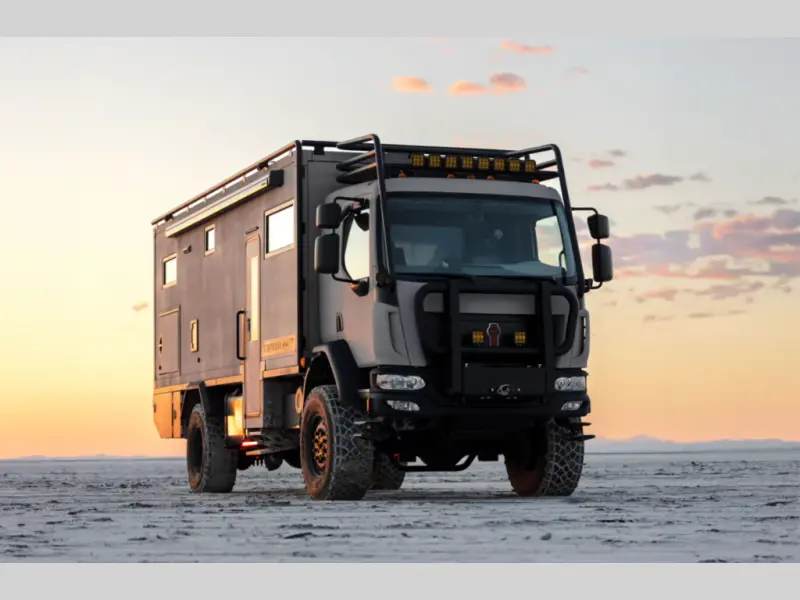

The 2027 Storyteller Overland GXV EPIC is an ultimate overlanding expedition vehicle built on an exclusive converted Kenworth K370 4x4 chassis. Powered by a 6.7L Cummins Turbo Diesel engine paired with an Allison 6-speed automatic 3500 HD transmission, this rig is engineered for global travel and demanding off-grid exploration. Key mechanical features include front and rear locking differentials, a 50:1 crawl ratio, King Off-Road shocks, 44-inch Bridgestone tires on forged aluminum wheels, and a 20,000-pound ComeUp winch.

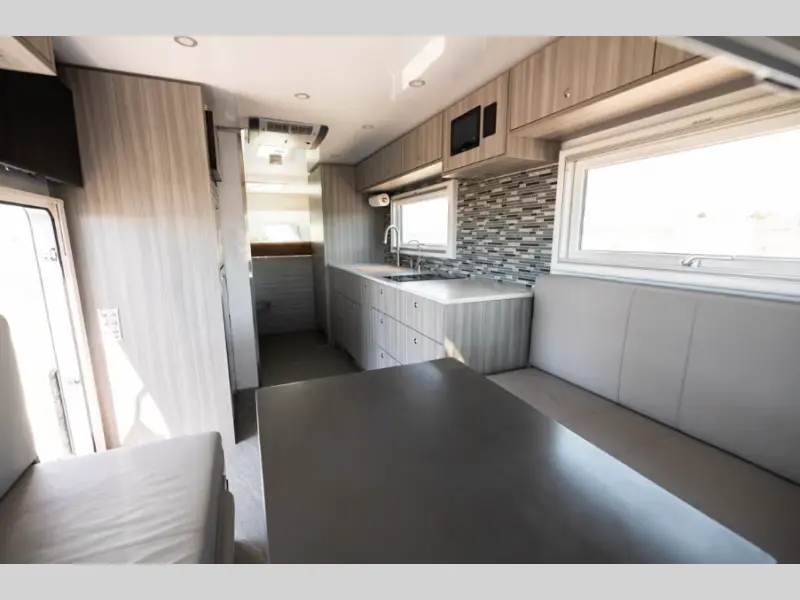

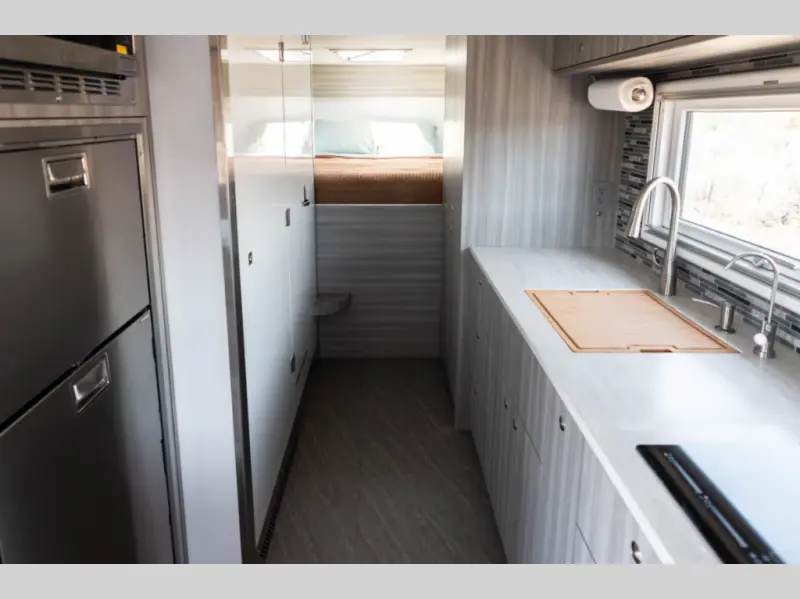

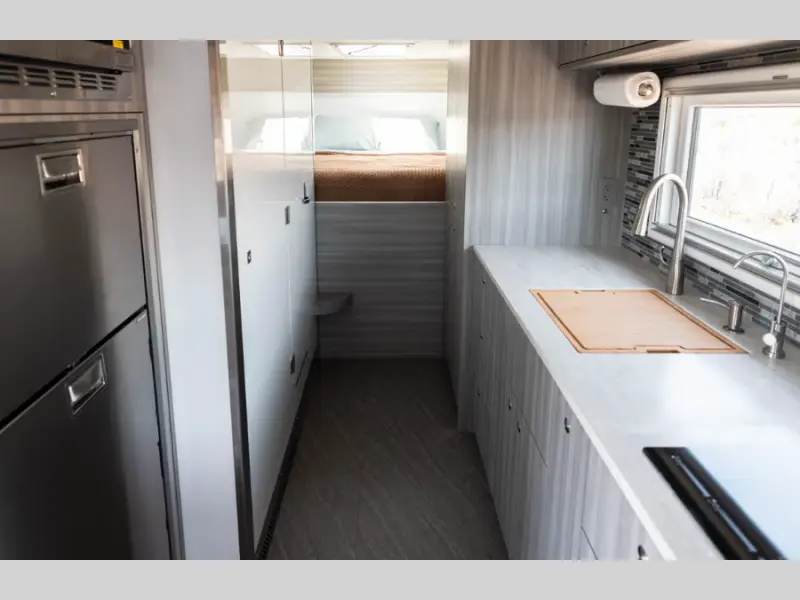

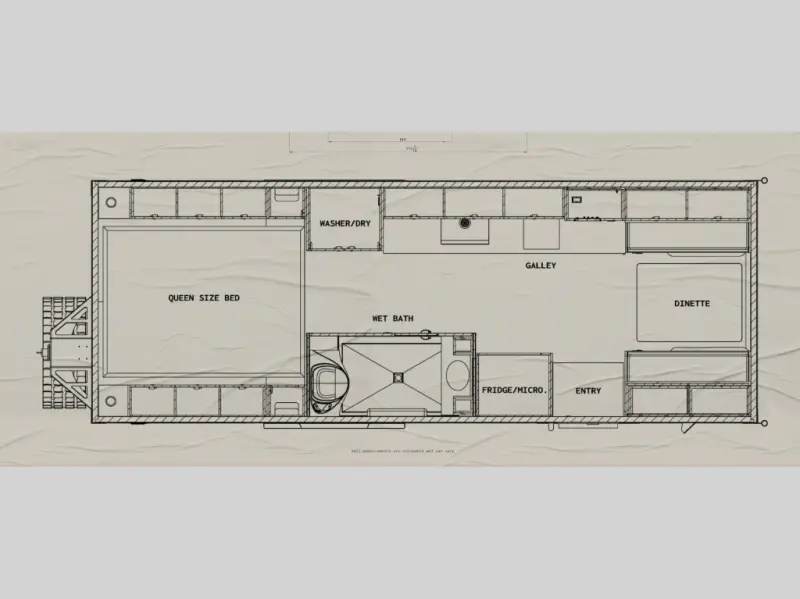

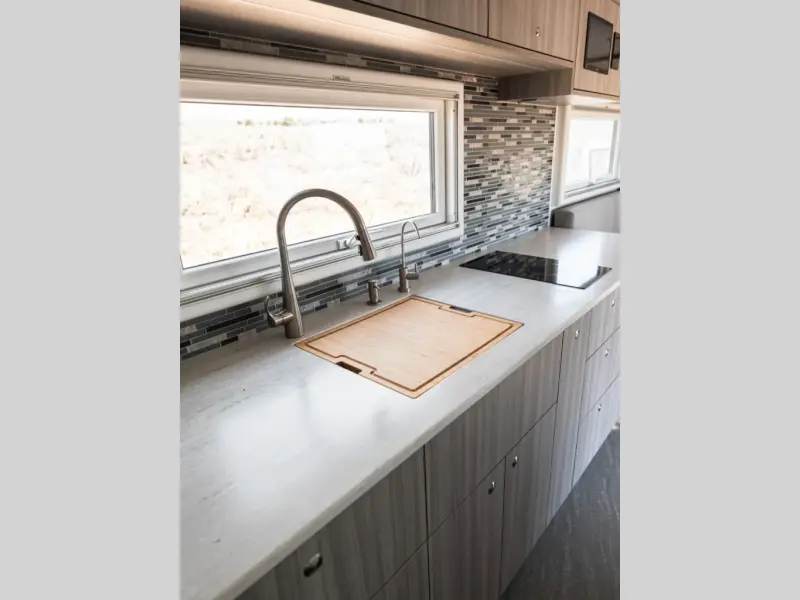

Inside the vacuum-sealed 60mm composite sandwich panel body, the GXV EPIC delivers luxury and all-season comfort. The interior features a master bedroom with an RV queen bed under a large ArmorVision skylight, paired with a front dinette that seats four adults and converts into a full-size bed. Climate control is maintained by a 15,000 BTU Truma Aventa air conditioner and an Aqua-Hot hydronic heating system. The gourmet galley is appointed with Corian solid-surface countertops, a dual-burner induction cooktop, a stainless steel refrigerator, a convection microwave air fryer, and a Guzzle H2O water purification system.
Off-grid endurance is backed by an 18kWh Mastervolt power system, a 4,500W inverter, 1,980W of roof-mounted solar panels, and an Onan QD 6,000W diesel generator. With 120 gallons of fresh water capacity and a 200-gallon fuel tank enabling up to 1,800 miles of driving range, travelers can remain self-sufficient anywhere in the world. Modern amenities including Starlink integration, 360-degree scene lighting, turn-signal cameras, and wireless charging terminals complete this luxury expedition platform.
Specs
- GVWR
- 33,000 lbs
- Winch
- 20,000 lb ComeUp Winch
- Engine
- 6.7L Cummins Turbo Diesel
- Torque
- 660 lb-ft
- Chassis
- Kenworth K370 Extended Cab 4x4
- Inverter
- 4500W Heavy-Duty High-Capacity
- Generator
- Onan QD Quiet 6000W Diesel Generator
- Wheelbase
- 194"
- Body Width
- 8'0" (10'2" mirror to mirror)
- Drivetrain
- GXV Exclusive 4WD with High/Low Transfer Case
- Grey water
- 40 gal
- Horsepower
- 360
- Crawl Ratio
- 50:1
- Fresh water
- 120 gal
- Furnace BTU
- 10000
- Shower Type
- Wet/Bath Shower
- Solar Power
- 1980W Rated Solar Panels
- Awning Count
- 1
- Transmission
- Allison 6-speed Automatic 3500 HD
- Differentials
- Locking Front and Rear
- Fuel Capacity
- 52
- Available Beds
- Queen
- Exterior Width
- 8'
- Heating System
- Aqua-Hot 450D 65,600 BTU Hydronic Heat
- Air Conditioner
- 15,000 BTU Truma Aventa Comfort
- Cooktop Burners
- 2
- Exterior Height
- 12' 7"
- Grey Water Tank
- 40 gal
- Fresh Water Tank
- 120 gal
- Ground Clearance
- 11.5"
- Refrigerator Size
- 6.9
- Refrigerator Type
- Stainless Steel
- Grey Water Capacity
- 40
- Max Exterior Height
- 12'5"
- Max Exterior Length
- 30'2"
- Max Interior Height
- 6'6"
- Black Water Capacity
- 4.75
- Fresh Water Capacity
- 120
- House Battery System
- 18kWh 24V Mastervolt Power System
- Cassette Toilet Capacity
- 4.75 gal
- Chassis
- Ram 5500
- Engine
- 6.7L Cummins Turbo
- Transmission
- Allison 6-speed Automatic 3500 HD
Features
- Kenworth K370 Extended Cab 4x4 chassis
- 6.7L Cummins Turbo Diesel engine with 660 lb-ft torque
- Allison 6-speed automatic 3500 HD transmission
- GXV exclusive 4WD system with high and low range transfer case
- 50:1 crawl ratio and front/rear locking differentials
- King Off-Road shocks and forged aluminum wheels with 44" Bridgestone L315 tires
- Scheel-Man air ride seats and custom extended cab space
- 20,000 lb ComeUp winch with 1/4" steel bumper and grill guard
- 18kWh 24V Mastervolt Power System charged by alternator
- 4500W heavy-duty high-capacity inverter

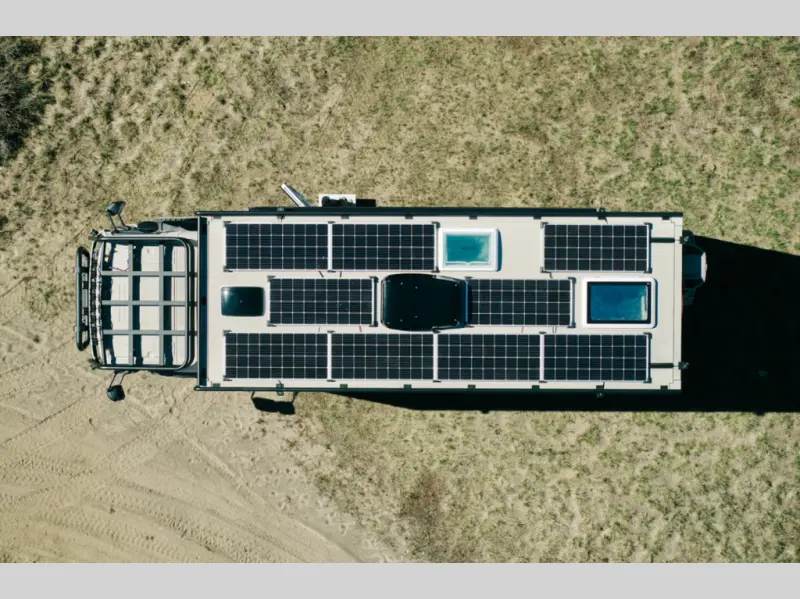

- 1980W rated solar panel array
- Onan QD quiet 6000W diesel generator with auto start
- Touchscreen CZone control system with Mission Control display
- Starlink ready with pre-installed power/network cables and roof mount
- Master bed with RV queen mattress (60" x 80")
- Large ArmorVision opening skylight with blackout shade and bug screen
- Front dinette seating for 4 adults, converting to full-size bed
- 15,000 BTU Truma Aventa Comfort AC unit
- Aqua-Hot 450D 65,600 BTU hydronic heating system
- Splendide built-in washer/dryer combo
- 32" TV with Bluetooth soundbar and dimmable lighting
- Vitrifrigo stainless steel high-efficiency refrigerator/freezer
- Kenyon SilKEN 1600W dual burner induction cooktop
- Contoure stainless steel convection oven, microwave, and air fryer
- Corian solid surface countertops
- Large stainless steel sink with cover
- Guzzle H2O water purification system

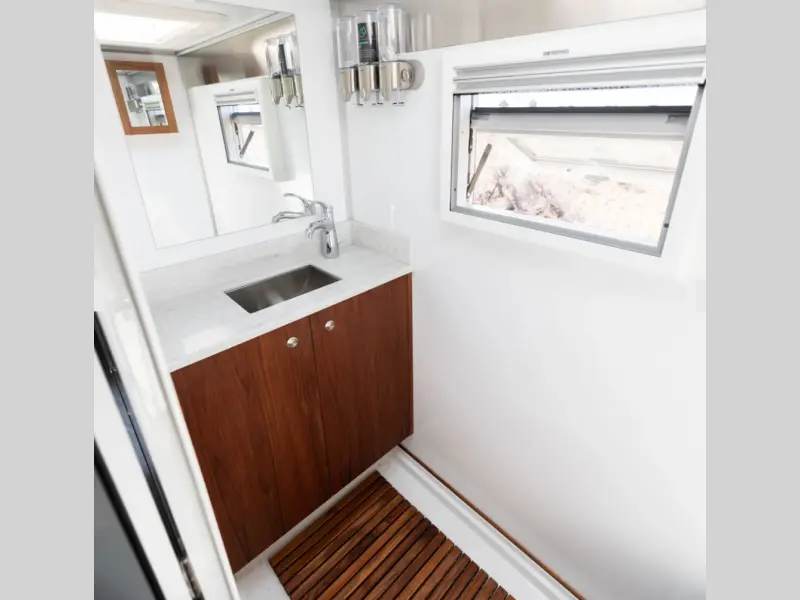

- Extra-large wet/dry bath with shower and sink
- Cassette toilet with 4.75 gal capacity and freshwater flush
- Teak upper and lower cabinets with mirror and dry storage
- Dedicated heat register for drying bathroom
- 120 gallon freshwater tank and 40 gallon grey water tank
- Continuous hot water system
- 60mm GXV composite sandwich panel construction
- Spray-on ArmorThane protective exterior coating
- 16' automatic awning with LED lighting
- 360-degree Diode Dynamics scene and fog lighting
- Heated rear garage with dual-direction 800 lb capacity sliding tray
- Full-size spare tire with electric winch system and nVader rear rack
