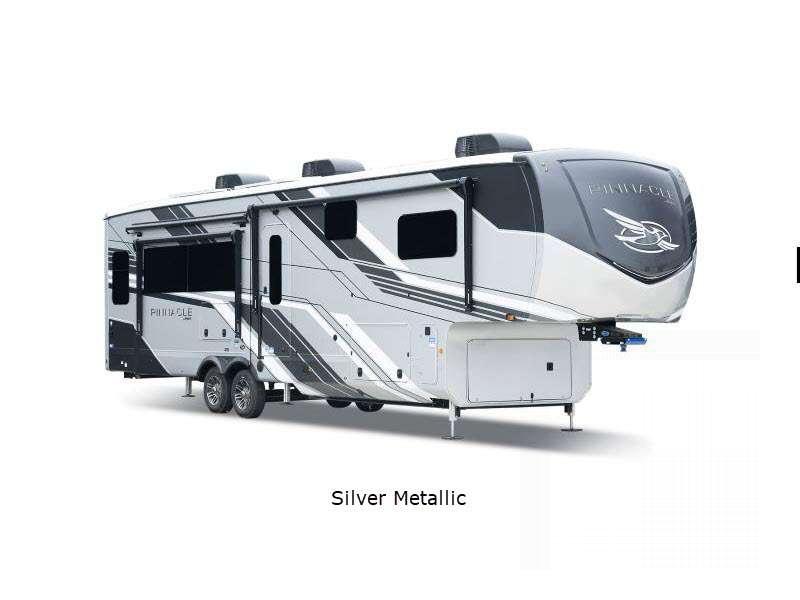

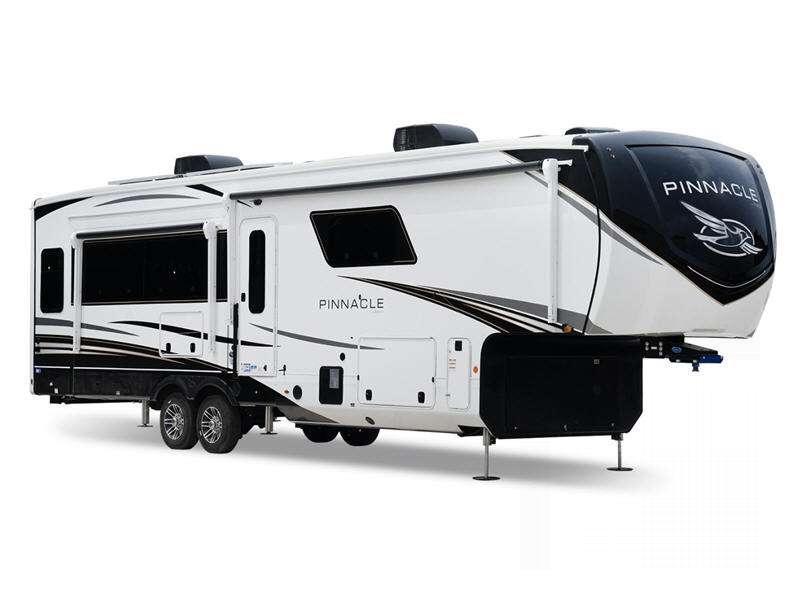

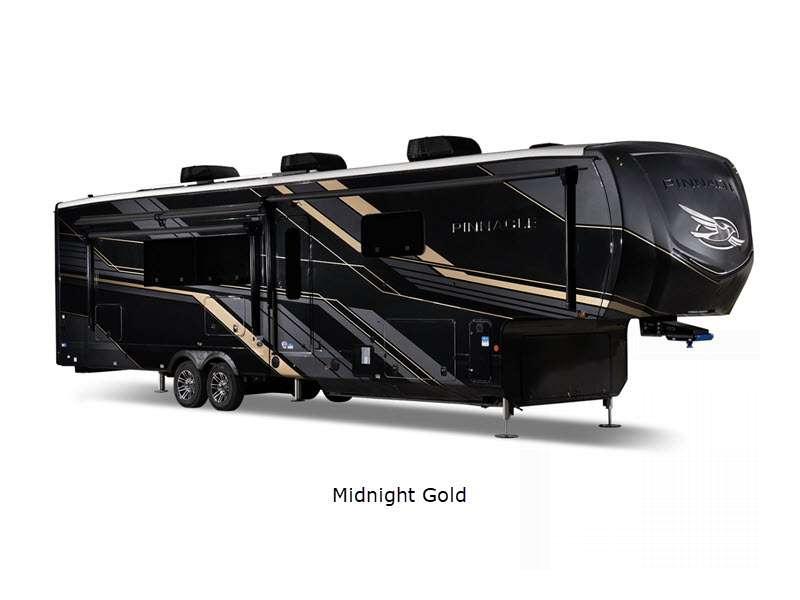

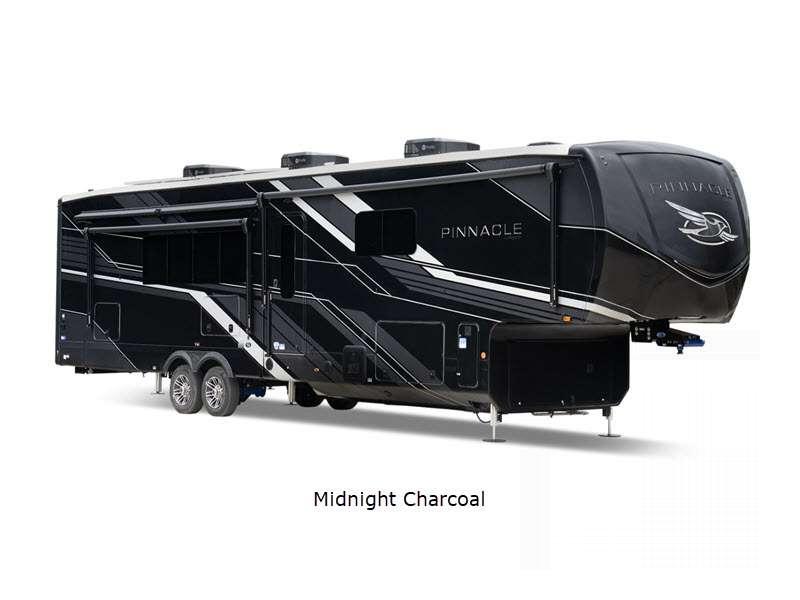

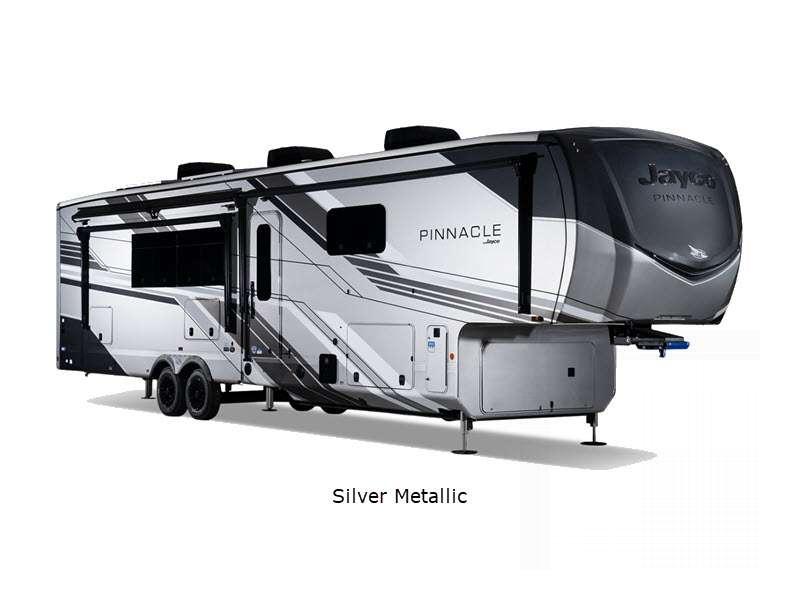

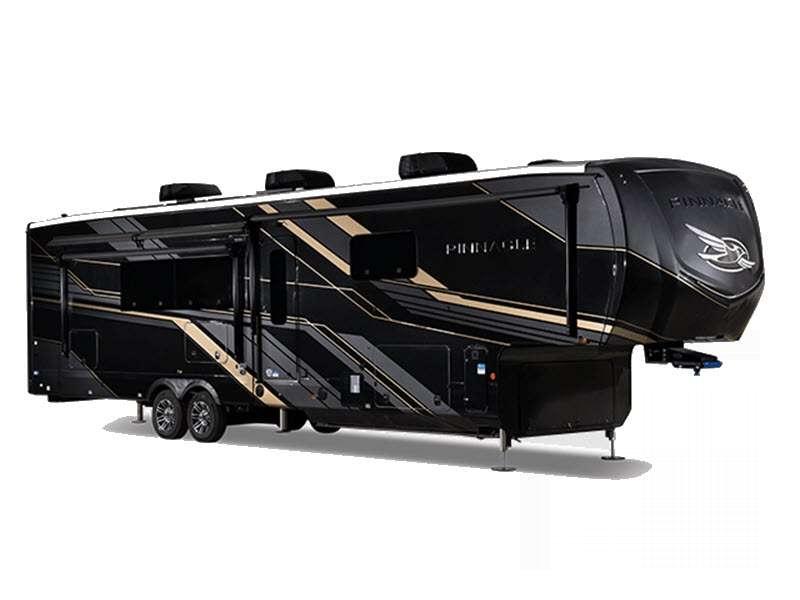

Jayco Pinnacle Fifth Wheel

Previous
Next
1 of 25

The Jayco Pinnacle is more than just another fifth wheel: it's the peak of luxury and the epitome of comfort no matter the destination!



Each Pinnacle includes the Jayco-exclusive 5-Star Handling Package which comes with Dexter axles, a MORryde pin box for a smoother tow and maximum safety on the road, Dexter heavy-duty shackles, a MORryde rubberized suspension system allowing you to better absorb and isolate road shock, and Goodyear BEAST tires. You will also enjoy the interior of the Pinnacle for its opulent and luxurious details, like the stainless steel 21 cubic foot refrigerator with water/ice in the door and the powered reclining theater seats with heat and massage, and nowhere else will you feel more refreshed and relaxed than in the lavish bathroom with its oversized residential shower.



It's time to travel your way in one of these stunning and grand Jayco Pinnacle fifth wheels!

  • Pinnacle 32RLTS

    Pinnacle 32RLTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 32RLTS highlights: Kitchen Island King-Size Bed ... more about Pinnacle 32RLTS

    Specifications

    Sleeps 4
    Slides 3
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Carbon Steel, Desert Sun
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 16' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36FBTS

    Pinnacle 36FBTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36FBTS highlights: Dual-Sink Vanity Full and Half ... more about Pinnacle 36FBTS

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2730 lbs
    Gross Weight 16500 lbs
    Dry Weight 13535 lbs
    Cargo Weight 2965 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36KPTS

    Pinnacle 36KPTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36KPTS highlights: King-Size Bed Ceiling Fan Kitchen ... more about Pinnacle 36KPTS

    Specifications

    Sleeps 4
    Slides 3
    Length 41 ft
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2815 lbs
    Gross Weight 16500 lbs
    Dry Weight 13455 lbs
    Cargo Weight 3045 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 17' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36SSWS

    Pinnacle 36SSWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36SSWS highlights: Window Seat Dual-Sink Vanity ... more about Pinnacle 36SSWS

    Specifications

    Sleeps 4
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 6 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 3145 lbs
    Gross Weight 16750 lbs
    Dry Weight 13805 lbs
    Cargo Weight 2945 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38FLWS

    Pinnacle 38FLWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 38FLWS highlights: Dual Entry Separate Living Room ... more about Pinnacle 38FLWS

    Specifications

    Sleeps 6
    Slides 6
    Length 42 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 6 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 3060 lbs
    Gross Weight 16995 lbs
    Dry Weight 14235 lbs
    Cargo Weight 2760 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 37 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38REFS

    Pinnacle 38REFS Floorplan Image

    Jayco Pinnacle fifth wheel 38REFS highlights: Five Slides Separate Living Room ... more about Pinnacle 38REFS

    Specifications

    Sleeps 6
    Slides 5
    Length 43 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2670 lbs
    Gross Weight 16995 lbs
    Dry Weight 13870 lbs
    Cargo Weight 3125 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 16' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37MDQS

    Pinnacle 37MDQS Floorplan Image

    Jayco Pinnacle fifth wheel 37MDQS highlights: Den/Office Loft Private Bedroom ... more about Pinnacle 37MDQS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 4
    Length 41 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 3290 lbs
    Gross Weight 16995 lbs
    Dry Weight 14330 lbs
    Cargo Weight 2665 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37RLWS

    Pinnacle 37RLWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 37RLWS highlights: Window Seat Master Suite Fireplace ... more about Pinnacle 37RLWS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 42 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 6 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 3060 lbs
    Gross Weight 16995 lbs
    Dry Weight 14235 lbs
    Cargo Weight 2760 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel Residential
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED HDTV
    Awning Info 20' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Pinnacle Features:

Standard Features (2019)



Standard Exterior Equipment

  • Wide-Body, 102" Frame
  • Wide-Stance Front Landing Gear
  • Tuff-Shell Vacuum-Bonded, Laminated Walls
  • Climate Shield:
    • Enclosed, Insulated, Heated Underbelly
    • High-BTU Output Furnace (40,000 BTU)
    • Astro-Foil in Roof and Floors
  • Aerodynamic Front and Rear Cap with LED Lights
  • Seamless Composite Roof Covering
  • 12" I-Class Cambered, Structural-Steel I-Beams
  • Completely Enclosed and Protected Slideout Mechanisms
  • Frameless, Dark-Tinted, Safety-Glass Windows
  • 30" x 78" Entry Door with Oversized Window
  • Screen Door with Kick Plate
  • Two Exterior Marine-Grade Speakers
  • Enclosed, Protected Basement Drop-Frame
  • Cable TV and Outlet in Basement
  • Convenient Dual Propane Compartment (60LB Capacity) on Off-Doorside
  • Doorside Compartment Framed and Vented for Third Propane Bottle
  • Stor-Galore Pass-Through Basement Storage
  • Heated, Cnclosed Uni-Dock Utility Center
  • 50 AMP Power Service
  • 75 Gallon Black Tank Capacity Minimum (N/A 37FLWS)
  • Prepped for Cable/Satellite TV
  • Digital TV Antenna
  • Prepped for Outside LP Grill
  • Under-Mounted Spare Tire
  • Roof Ladder
  • Hitch Light
  • Upper Deck Slideout Convenience Light
  • EX-Cord Cargo Area Extension Cord Access Port
  • Cargo Area Storage System (Select Models)

Standard Interior Equipment

  • Custom Residential Miter-Cut Maple Cabinet Doors with Hidden Hinges
  • Hardwood Cherry Cabinet Stiles
  • Hardwood Slideout Fascia
  • Residential-Style Pantry with Pull-Out Drawers
  • Soft-Close Steel Ball-Bearing Drawer Guides, 75LB Capacity with Full Extension
  • Large-Split, Under-Mounted, Stainless-Steel Sink
  • Residential-Grade, Pull-Out Kitchen Faucet
  • Water Heater Bypass
  • 21 Cubic Foot Residential Refrigerator with Water/Ice in Door
  • 1,200 Watt Inverter with Residential Refrigerator
  • Furrion Executive Chef Gas Cooktop
  • Residential-Grade Wood-Plank Vinyl Flooring
  • Shaw R2X Stain-Resistant Residential Carpeting
  • Night Light Toe-Kick Lighting in Bedroom, Bathroom, and Kitchen
  • 90 AMP Power Center with Charge Wizard
  • Command Center for Switches
  • Closeable and Directional A/C Vents
  • Prepped for Third A/C (N/A 36SSWS)
  • Tri-Fold Hide-a-Bed Sofas with Ottoman
  • Powered Reclining Theater Seat with Heat and Massage
  • Ceiling Fan (N/A 37FLWS)
  • Decorative Molding with LED Lighting in Main Living/Kitchen Areas
  • LED Ceiling Lights Throughout
  • 78" Height in Living Area Slideout Rooms
  • Porcelain Bath Stool with Foot Flush

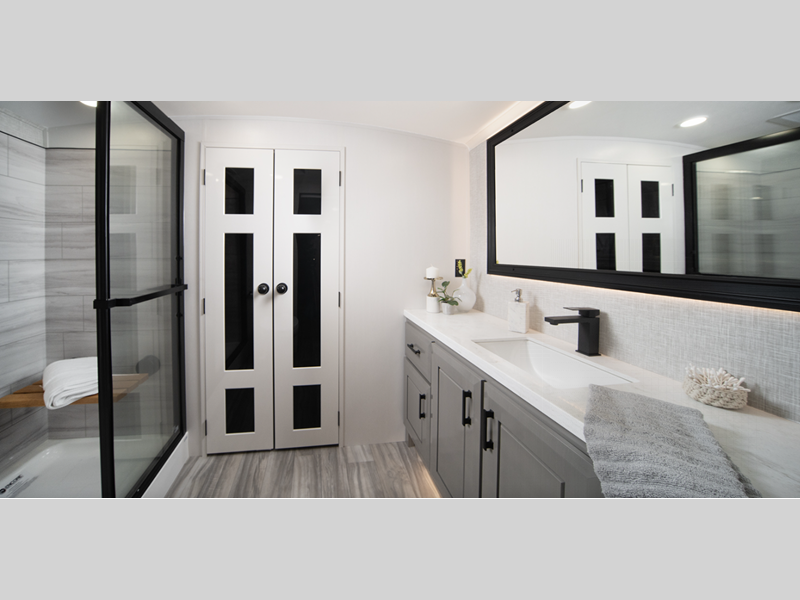

  • Under-Mounted Stainless-Steel Bathroom Sink
  • Utility Hooks in Bathroom
  • Skylight above Shower
  • Full-Trunk, Under-Bed Storage
  • Walk-in-Style Front Closet with Dual Hanging Rods and Cedar Lining
  • Mullion-Style Front Wardrobe Doors
  • Bedroom Dresser Storage

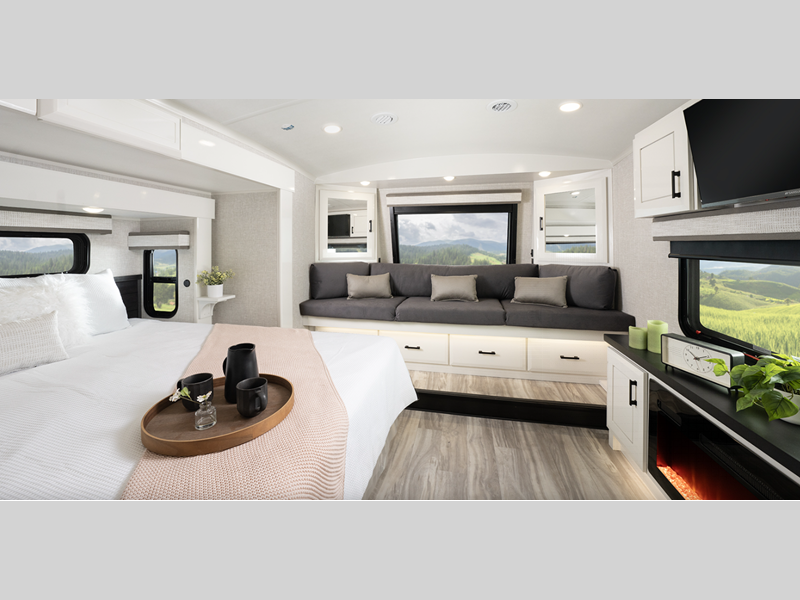

  • Bedroom Slide Fascia Built-In Night Stands

Customer Value Package (Mandatory)

  • 15,000 BTU Whisper Quiet A/C
  • 12" Magnum Frame System
  • Arched Interior Ceiling with 82” Upper Deck Interior Height
  • Bath Skylight
  • Bathroom Power Vent
  • Bedspread
  • Oversized Folding Exterior Grab Handle
  • Frameless G20 Dark-Tinted Windows
  • LED Interior Lighting
  • Slam-Latch Baggage Doors with Strut Assist
  • Sofa and Bed Pillows

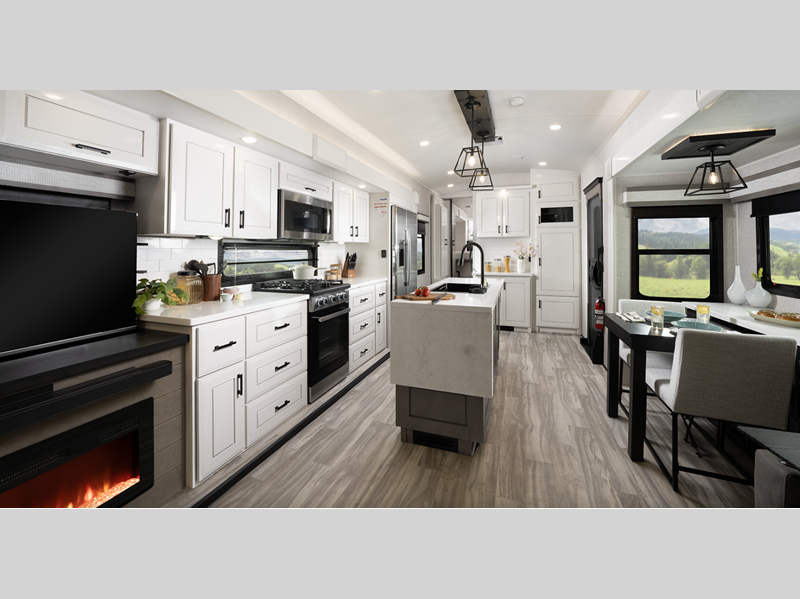

  • Solid-Surface Kitchen Countertops
  • Keyed Alike Exterior Doors

Pinnacle Luxury Package (Mandatory)

  • 6-Point Electric Auto Leveling System
  • Bedroom 15,000 BTU Whisper Quiet A/C
  • Prepped for Backup Camera/Monitoring System
  • Carefree Power Awning with LED Light Strip
  • Indoor/Outdoor Central Vacuum System with Kick Pan
  • Magnum Truss XL6 Roof System
  • Helix Cooling System Featuring a Jayco-Exclusive Duct Design, Exterior-Mounted A/C Units, Directional/Closable A/C Vents, and Larger Return Air Vents with User Accessible Filters
  • MORryde StepAbove Entrance Steps
  • Bluetooth/HDMI High-Output Entertainment System

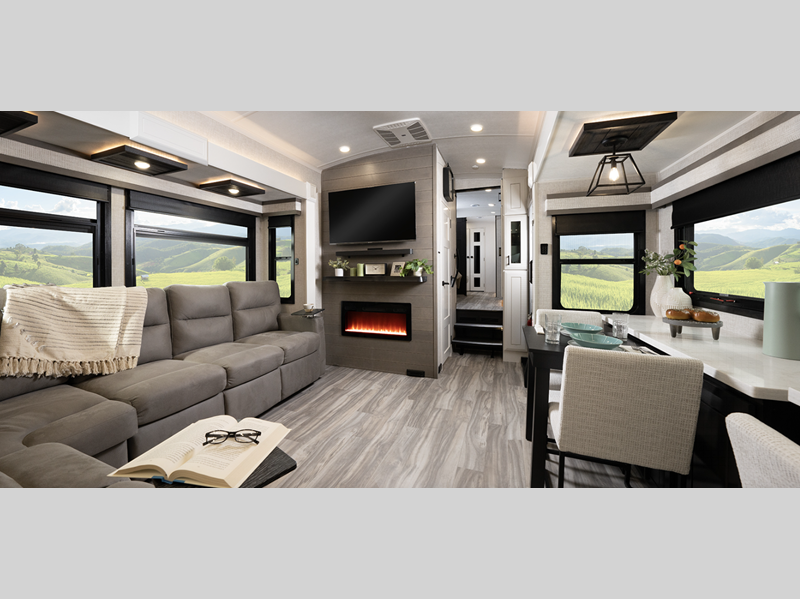

  • Electric, Thermostat-Controlled Fireplace
  • LED Exterior Lighting
  • Soft-Close Kitchen Drawers
  • Stereo Sound Bar
  • Prepped for Roof-Mount Satellite
  • Prepped for Dishwasher
  • Oversized Battery Compartment
  • Fully Painted and Clear-Coated Front Cap
  • Power Kitchen Vent with Wall Controls and Rain Sensor
  • Prepped for Sidewall and Roof-Mount Solar Panels
  • Whole Coach Water Purification System
  • Prepped for Washer/Dryer (Accommodates Stackable Unit)
  • Gel 360 Front Cap, Rear Cap, and Premium High-Gloss Sidewalls
  • Big-Screen LED HDTVs in Living Areas
  • Jayco Luxury Sleep System with Simmons Residential Foam-Top Mattress
  • Dual Sun Shade and Blackout Roller Shades in Living Room
  • 32" LED HDTV in Bedroom
  • Residential Kingston Cherry Hardwood Cabinet Doors, Miter-Cut with 3" Rails
  • Oversized 36" Wide Residential Showers
  • Powered 50 AMP Cord Reel
  • Freestanding Table with Two Dinette Chairs and Two Folding Chairs

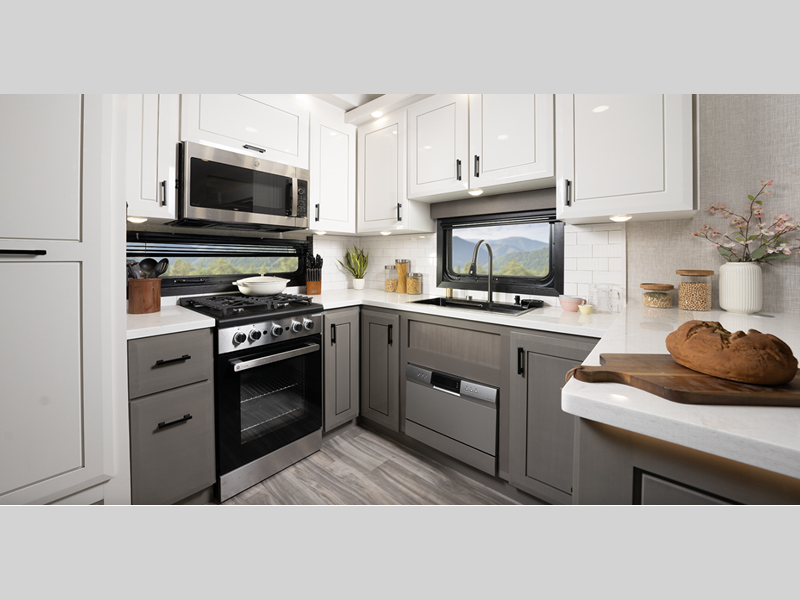

  • Stainless-Steel Over-the-Range Microwave Oven
  • One Control Digital Command System for Levelers, Slideouts, and Exterior Lights
  • Blackout Roller Shades in Bedroom
  • Built-In Wall Oven

5-Star Handling Package

  • Dexter 7,000LB Axles with Nev-R-Adjust Brakes
  • Dexter Heavy-Duty Shackles with Wet Bolt Fasteners and Bronze Bushings
  • MORryde Pin Box
  • MORryde CRE4100 Suspension System
  • Goodyear 16" BEAST Tires

Exterior

  • Carbon Steel Paint
  • Desert Sun Paint
  • Standard Graphics

Decor

  • Cappuccino
  • Latte
  • Greystone

Options

  • 18 Cubic Foot Refrigerator
  • Euro Bunk (Select Models)
  • Queen-Size Bed (Select Models)
  • Recliners (Select Models)
  • Convection Microwave
  • FURRION Backup Camera

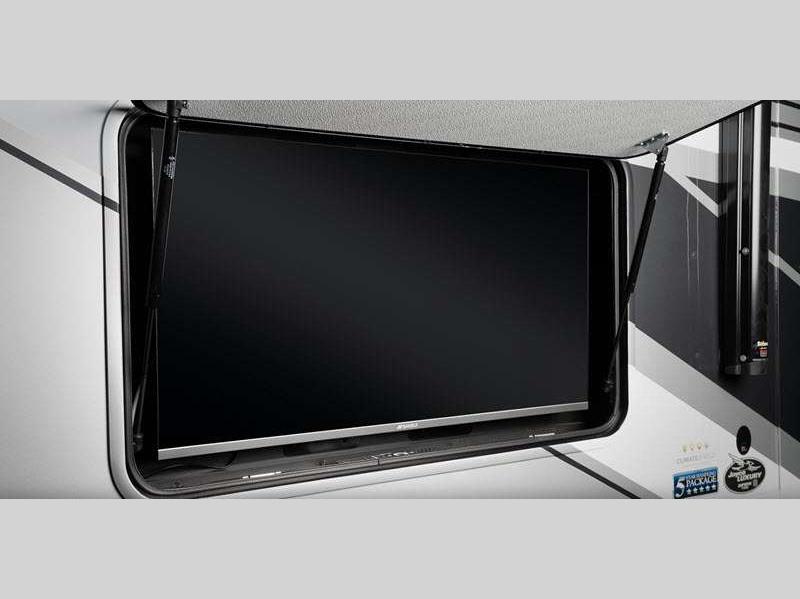

  • 32" Exterior Built-In TV
  • Third 15,000 BTU A/C (Low Profile) in Living Room (38FLWS)
  • Sani-Con Turbo Waste Evacuation System
  • Prepped for Generator with 120LB Max LP System
  • 5,500 Watt Onan Microquiet Generator
  • Dual Pane All-Weather Windows
  • 2nd Power Awning (Select Models)
  • Slideout Awning with Metal Wrap (3) (Select Models)
  • Slideout Awning with Metal Wrap (4) (Select Models)
  • Slideout Awning with Metal Wrap (5) (Select Models)
  • 2" Accessory Receiver Hitch
  • Exterior Grill
  • Canadian Standards
  • Customer Value Package with Heat Pump
    • 15,000 BTU "Whisper Quiet" Central Air with Heat Pump
  • Customer Value Package
    • 15,000 BTU "Whisper Quiet" Central Air
    • 12" Magnum Frame System
    • Arched Interior Ceilings
    • Bath Skylight
    • Bathroom Power Vent
    • Bedspread
    • Folding Exterior Grab Handle
    • Frameless Dark Tint Windows
    • LED Interior Lighting
    • Security Lights
    • Slam Latch Baggage Doors
    • Sofa and Bed Pillows
    • Solid Surface Kitchen Countertops
    • Keyed Alike Exterior Door Locking System
  • Pinnacle Luxury Package
    • Magnum XL6 Truss System
    • MOR Ryde Step-Above Entry Steps
    • Bedroom 15,000 BTU "Whisper Quiet" AC
    • 6-Point Electric Auto Leveling System
    • Residential Kingston Cherry Hardwood Cabinet Doors with 3" Mitre-Cut Rails
    • Soft-Close Kitchen Drawers
    • Prepped for Roof-Mount Satellite
    • One Control Digital Command System for Levelers, Awnings, Sliderooms, and Lights
    • Prepped for Backup Camera
    • Bluetooth/HDMI Entertainment System
    • Carefree Power Awning and LED Light Strip
    • Central Vacuum System
    • Electric Fireplace
    • LED Exterior Lighting
    • Oversized Battery Compartment
    • Fully Painted Gelcoat Fiberglass Front Cap
    • Power Kitchen Vent
    • Prepped for Roof and Sidewall Solar Panels
    • Helix Cooling System
    • Whole Coach Water Purification System
    • Fulltimer Kitchen Storage
    • 32" Bedroom TV
    • Big Screen LED HDTVs in Living Area
    • Blackout Roller Shades in Bedrooms
    • Dual Sun Shade and Blackout Roller Shades in Living Areas
    • Free-Standing Table and Chairs
    • Gel 360 - Front Cap, Rear Cap, Sidewalls All Gel Coat Fiberglass
    • Jayco Luxury Sleep System with Simmons Residential Foam Mattress
    • LED Back-Lit Crown Molding in Living Area
    • Powered 50 AMP Cord Reel
    • Executive Chef Built-In Wall Oven
    • Stainless Steel Over-the-Range Microwave Oven
    • Prepped for Washer/Dryer
    • Prepped for Dishwasher
    • Stereo Sound Bar
  • 5-Star Handling Package
    • Dexter 7,000LB Axles with Nev-R-Adjust Brakes
    • Dexter Heavy-Duty Shackles with Wet Bolt Fasteners and Bronze Bushings
    • MORryde Pin Box
    • MORryde CRE4100 Suspension System
    • Goodyear 16" BEAST Tires



See us for a complete list of features and available options!

All features and specifications are subject to change.

Manu-Facts:

Jayco, Inc. was founded in 1968 by a man of strong faith and vision. The late Lloyd J. Bontrager, family man and inventor, felt he could build the world a better RV. He longed to create a company of his own, one that clearly reflected his ideals: a company where everyone would be treated as "family".

With encouragement from his wife Bertha, Lloyd started Jayco on their farm--in two chicken houses and a barn! He developed his own prototype camping trailer and a unique lifter system for fold-down campers, the basic design of which is patented and still in use today. By the end of 1968, his fledging company of 15 employees had sold 132 fold-down camping trailers.

Today, Jayco's "family" of employees has grown to nearly 1,500 people, while more than 25,000 people join our "extended family" of customers each year.

At Jayco, our mission statement is: Committed to being the most respected name in recreation vehicles. We will consistently build a high quality, high value, competitively priced product at acceptable margins, treat every situation with the highest level of integrity in a timely manner, and continually work to reduce total cost to achieve acceptable returns.


Fretz RV 3479 Bethlehem Pike Souderton, PA 18964 215-723-3121
Copyright © 2018 Fretz RV • RV Dealer Website DesignPrivacy PolicySold RVs
